- Spline Count (Number of teeth): 28
- Threaded Collar: Yes (also suitable for non-threaded)

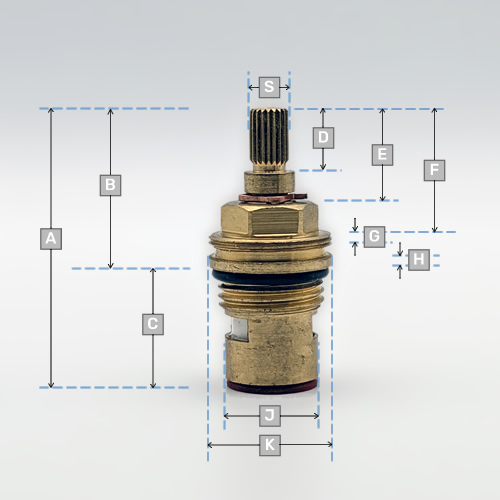

- A - Measurement: 53mm
- B - Measurement: 31mm
- C - Measurement: 24mm
- D - Measurement: 13mm
- E - Measurement: 17mm
- F - Measurement: 28mm
- H - Measurement: 2.5mm
- J - Measurement: 18mm
- K - Measurement: 24mm
- S - Measurement: 7.8mm
- BSP Thread Size: 1/2 inch
Screws not included, please make sure to keep your old screws.
