- Spline Count (Number of teeth): 20
- Threaded Collar: Yes (also suitable for non-threaded)

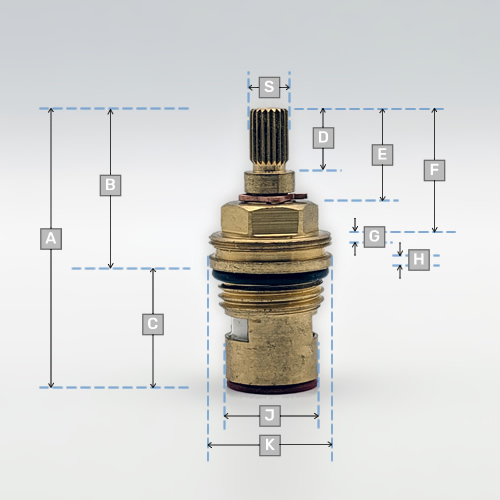

- A - Measurement: 53mm
- B - Measurement: 30mm
- C - Measurement: 23mm
- D - Measurement: 12mm
- E - Measurement: 18mm
- F - Measurement: 29mm
- H - Measurement: 2mm
- J - Measurement: 18mm
- K - Measurement: 24mm
- S - Measurement: 7.5mm
- BSP Thread Size: 1/2 inch
Screws not included, please make sure to keep your old screws.
