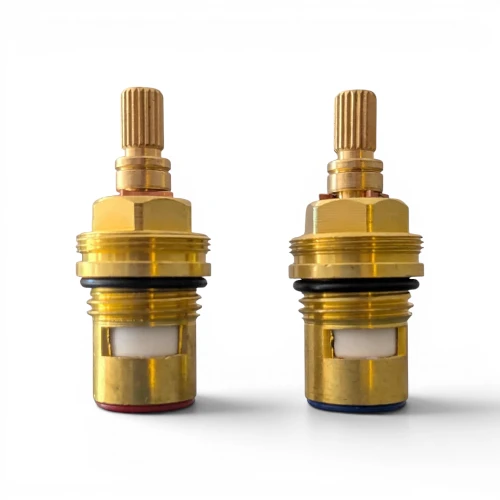

TC047

Price £24.00
  • Spline Count (Number of teeth): 20
  • Threaded Collar: Yes

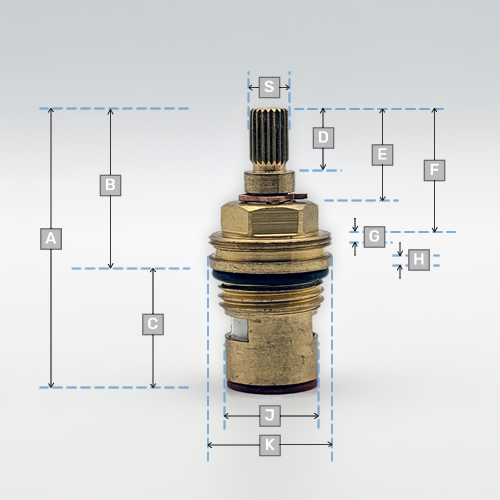

  • A - Measurement: 55mm
  • B - Measurement: 33mm
  • C - Measurement: 23mm
  • D - Measurement: 12mm
  • E - Measurement: 20mm
  • F - Measurement: 31mm
  • H - Measurement: 2.5mm
  • J - Measurement: 18mm
  • K - Measurement: 24mm
  • S - Measurement: 7.5mm
  • BSP Thread Size: 1/2 inch
