TC085 - Tap Cartridge

Price £58.00
Please Note:

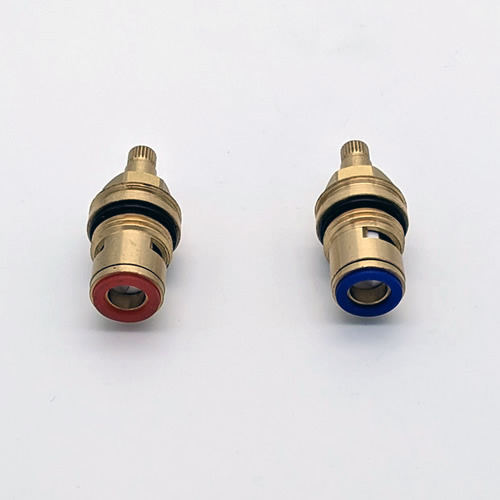

Blue ceramic tap cartridges open anti-clockwise. Red ceramic tap cartridges open clockwise. See Frequently Asked Questions for details before ordering.

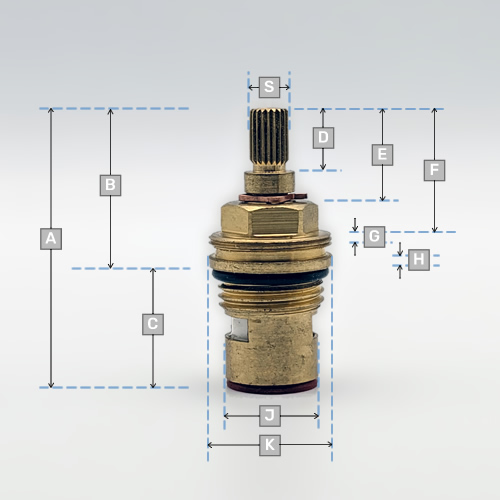

  • Spline Count (Number of teeth): 24
  • Threaded Collar: Yes
  • A - Measurement: 54mm
  • B - Measurement: 31mm
  • C - Measurement: 23mm
  • D - Measurement: 7mm
  • E - Measurement: 16mm
  • F - Measurement: 23mm
  • G - Measurement: 2.5mm
  • H - Measurement: 2.5mm
  • J - Measurement: 18mm
  • K - Measurement: 24mm
  • S - Measurement: 7.8mm
  • BSP Thread Size: 1/2 inch

Screws not included, please make sure to keep your old screws.

Delivery and Returns Information

We use a range of couriers to deliver your order, based on your location, the size, length and quantity of your order and the shipping service selected. Our dispatch system is automated and will select the most appropriate service based on these variables.

If you select standard delivery your order will normally arrive within a maximum of 2-3 working days. Express deliveries are sent on a 1-2 working day service but most will be delivered next working day. If your item has not arrived within 5 working days on either service then please contact us by email at info@tap-cartridges.com.

Shipping is FREE to all of the UK on smaller items and 95% of Mainland UK on larger items*. Please allow an extra day for deliveries to remote areas (Highlands, Isle of Man etc).

We make every effort to dispatch all orders placed up until 14.00 on the same working day, any order placed after 14.00 may not be dispatched until the next working day.

For more information click here.

Spline Count:
24
Spline Width:
7.8mm
BSP Thread Size:
1/2 inch (18mm diameter)
Measurement A:
52mm
Measurement A:
53mm
Measurement A:
54mm
Measurement A:
55mm
Measurement A:
56mm
Measurement B:
29mm
Measurement B:
30mm
Measurement B:
31mm
Measurement B:
32mm
Measurement B:
33mm
Measurement C:
22mm
Measurement C:
23mm
Measurement C:
24mm
Measurement D:
6mm
Measurement D:
7mm
Measurement D:
8mm
Measurement D:
9mm
Measurement D:
5mm
Measurement E:
18mm
Measurement E:
17mm
Measurement E:
16mm
Measurement E:
14mm
Measurement E:
15mm
Measurement F:
21mm
Measurement F:
22mm
Measurement F:
23mm
Measurement F:
24mm
Measurement F:
25mm
Measurement H:
3mm
Measurement H:
2mm
Measurement H:
2.5mm
Measurement J:
17mm
Measurement J:
18mm
Measurement J:
19mm
Measurement K:
22mm
Measurement K:
23mm
Measurement K:
24mm
Measurement K:
25mm
Measurement K:
26mm
Threaded Collar:
Yes
Measurement G:
2mm
Measurement G:
2.5mm
Measurement G:
3mm
Type:
1/4 Turn Ceramic Disc Cartridge
Measurement S:
7.7mm
Measurement S:
7.8mm
Measurement S:
7.9mm
Measurement S:
7.6mm
Measurement S:
8.0mm
