TC109 Tap Cartridge Gland

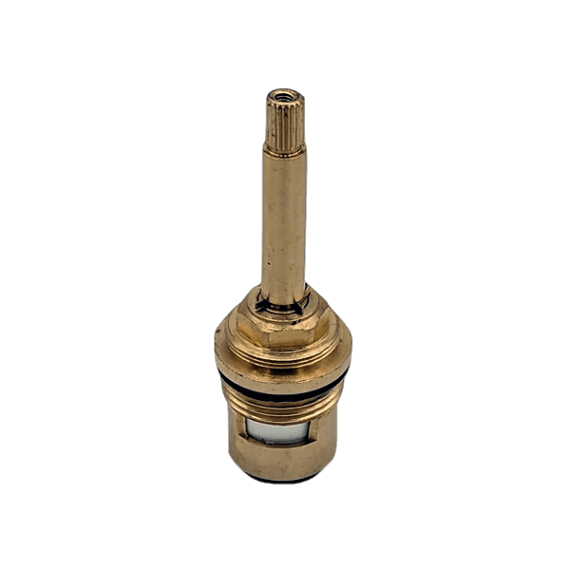

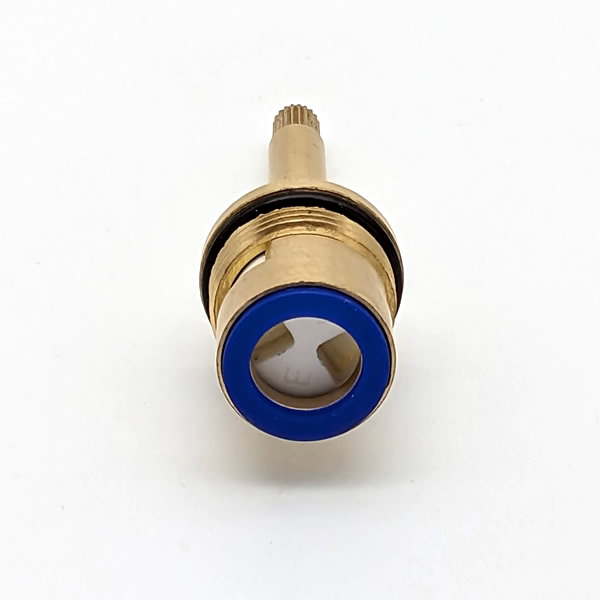

TC109 - Tap Cartridge

Price £18.00
Please Note:
Blue ceramic tap cartridges open anti-clockwise. Red ceramic tap cartridges open clockwise. See Frequently Asked Questions for details before ordering.
Tap Cartridge Threaded Diagram
Please note these cartridges are sold as single items.
Please adjust the quantity if you require more than one.

  • Spline Count (Number of teeth): 20
  • Threaded Collar: Yes
  • A - Measurement: 88mm
  • B - Measurement: 60mm
  • C - Measurement: 28mm
  • D - Measurement: 11mm
  • E - Measurement: 47mm
  • F - Measurement: 53mm
  • G - Measurement: 3mm
  • H - Measurement: 3mm
  • J - Measurement: 24mm
  • K - Measurement: 29mm
  • S - Measurement: 7.6mm
  • BSP Thread Size: 3/4 inch
  • Clockwise quarter turn

Screws not included, please make sure to keep your old screws.
